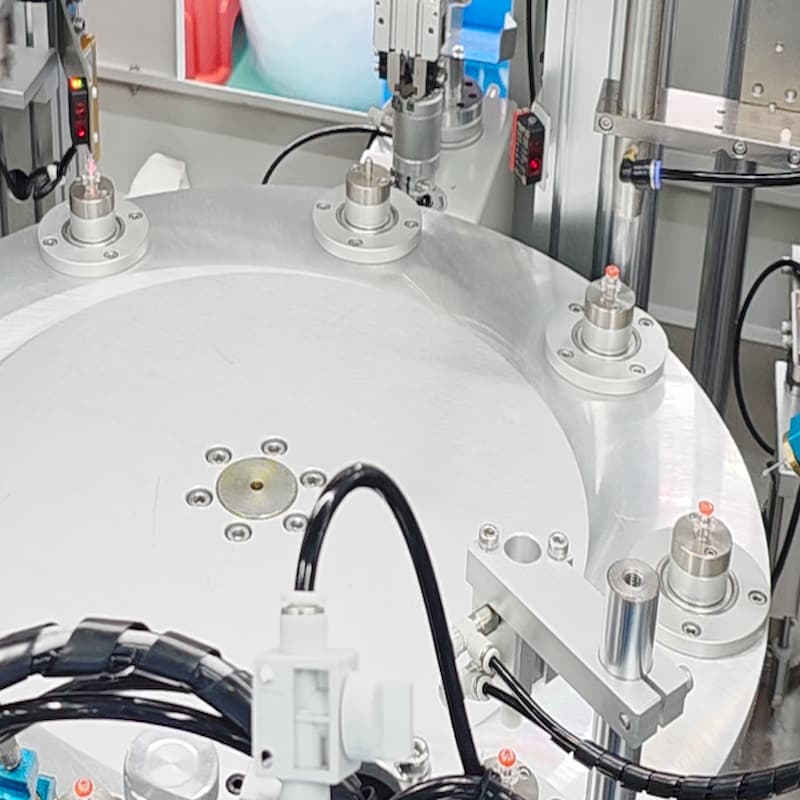

Medical High‑Pressure Connector Automatic Assembly Machine

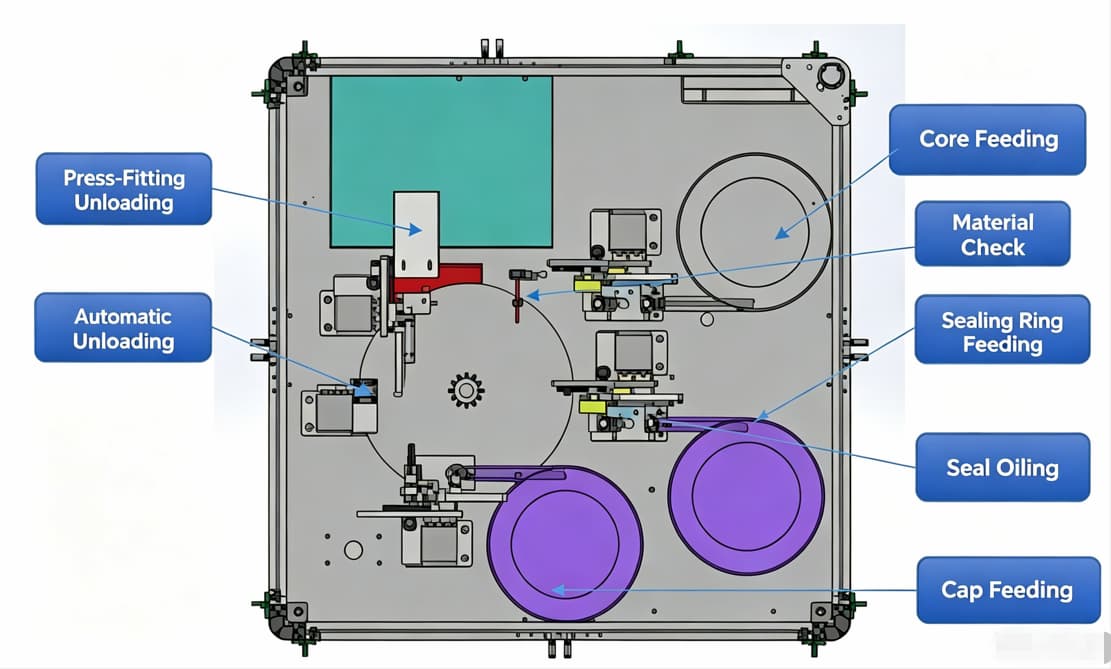

This machine performs automatic assembly processes including inner core feeding, sealing ring feeding, sealing ring oil dispensing, threaded cap feeding, automatic press‑fitting and automatic unloading for high‑pressure connectors. Machine Capacity: 1200 PCS/H
ModelNo. :
Synrit-HPC1Capacity :
1200PCS/HOperating Personnel :
1persNote: Product structures vary from company to company. Details of product components are not displayed. Custom‑tailored non‑standard solutions are available according to your products. This case only demonstrates partial working procedures. Feel free to contact us for full‑scale information!
(Component details are not shown, non‑standard customization available upon request)
| No. | Process | Description | Operator | Remarks |
|---|---|---|---|---|
| 1 | Automatic Feeding of Connector Inner Core | 0.3 | Vibratory bowl feeder | |

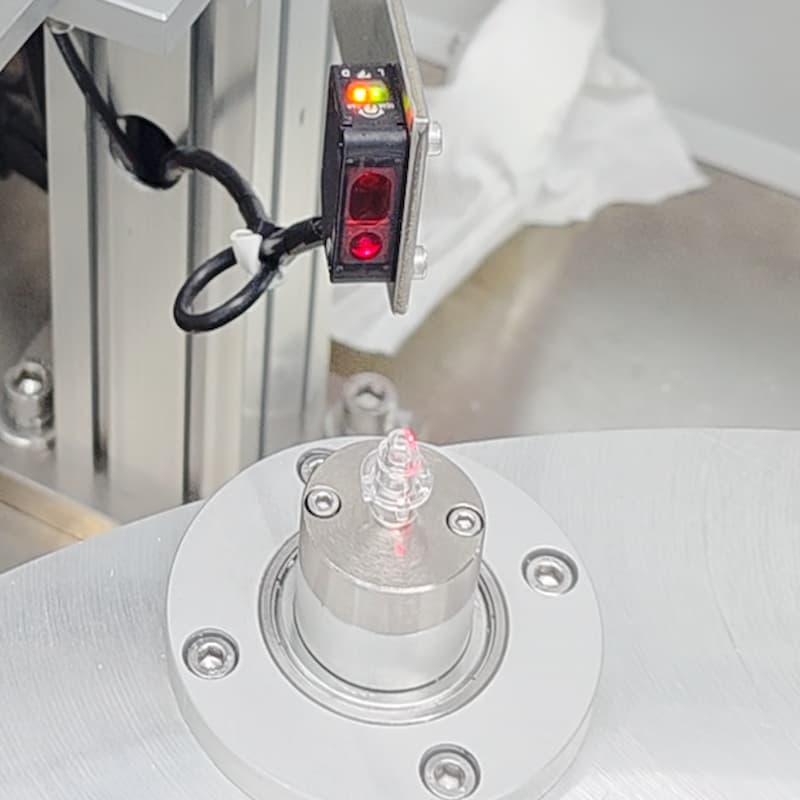

| 2 | Material Inspection | Sensor detects presence of parts in fixture | 0 | Sensor check for parts inside fixture |
| 3 | Automatic Feeding of Seal Ring | 0.3 | Vibratory bowl feeder | |

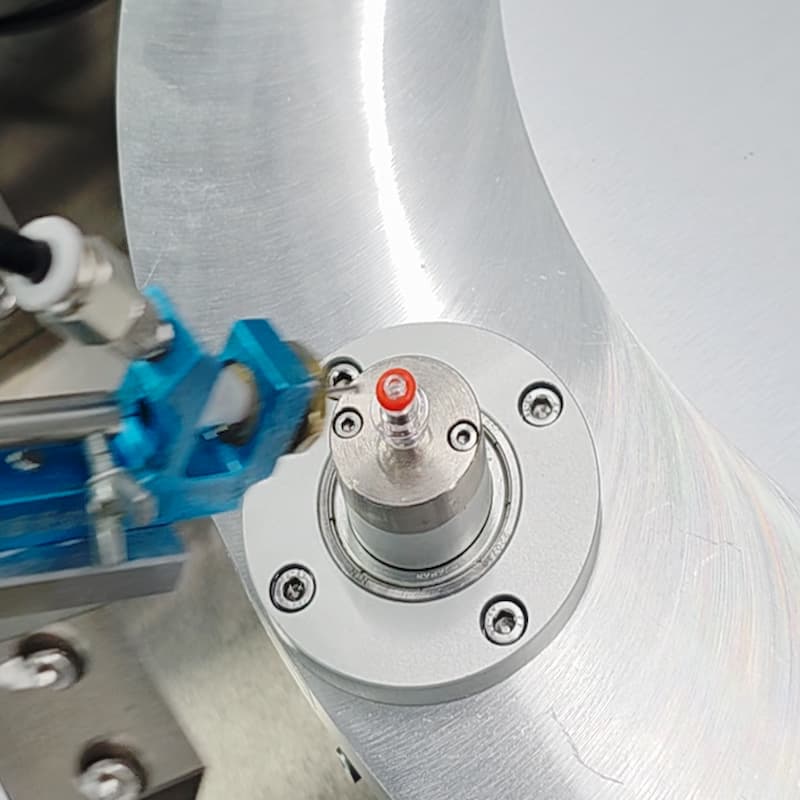

| 4 | Automatic Oil Dispensing for Screw Seal Ring | 0 | Vibratory bowl feeder | |
| 5 | Automatic Feeding of Thread Cap | 0.3 | Compatible with 2 specifications, vibratory bowl feeder | |

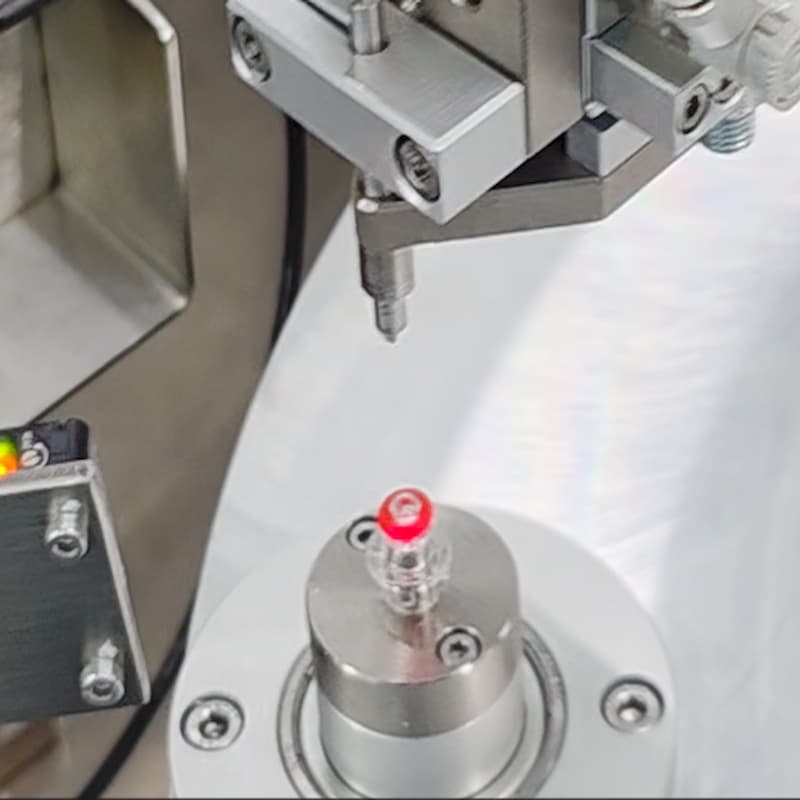

| 6 | Automatic Press‑Fitting | Press thread cap onto connector inner core | 0 | Press‑fit thread cap and connector inner core |
| 7 | Automatic Unloading | Output finished parts | 0 | Unload to pallet |
1 set × Automatic Assembly Machine 3 sets × Material Vibratory Bowl Feeders
| Item | Brand | Remarks |
|---|---|---|
| Linear Guide & Slider | HIWIN, AIRTAC (Taiwan) | Genuine original |
| PLC | Delta | Genuine original |
| Pneumatic Components | AIRTAC / EMC | Genuine original |
| Motion Controller | Synrit | Genuine original |
| HMI | Weinview, Delta | Genuine original |
| Relay | Omron | Genuine original |
| Power Supply | Delta, Mean Well | Genuine original |
| Asynchronous Motor | Jingyan | Genuine original |
| Servo Motor | KOSI / HCFA | Genuine original |
| Stepper Motor | Xingfengyuan | Genuine original |
| Bearing | NSK, HRB | Genuine original |
| Sensor | Panasonic or equivalent brand | Genuine original |
| Magnetic Switch | AIRTAC | Genuine original |
