This multi-material integrated automatic bagging machine covers the entire process of label printing/folding/inspection, automatic feeding of labels, instruction sheets and screw kits, visual verification, bagging, sealing and finished product conveying. It not only incorporates the core functions of a standard bagging machine, but also integrates multi-material automated handling and quality verification modules.
ModelNo. :
Synrit-BM1Capacity :
600pcs/hOperating Personnel :
1 persPower :
4.5KWSize :
3.2*1.8*2MAll of our equipment lines are compatible with non-standard customization. We can tailor-make exclusive automation solutions based on the client’s production line scale, product processes and industry compliance criteria.
Features
1. Higher efficiency
2.Lower labor cost
3.Consistent insertion quality
4.Fewer errors
5.Stable automated workflow
Process Description
Process Flow Breakdown
| No. | Process | Description | Number of Operators | Remarks |
| 1 | Automatic Label Printing | Automatic printer (ZEBRZ 105S) | 0 | 5-part label printing |
| 2 | Automatic Label Conveying | Labels are automatically conveyed to the feeding positioning end | 0 | - |

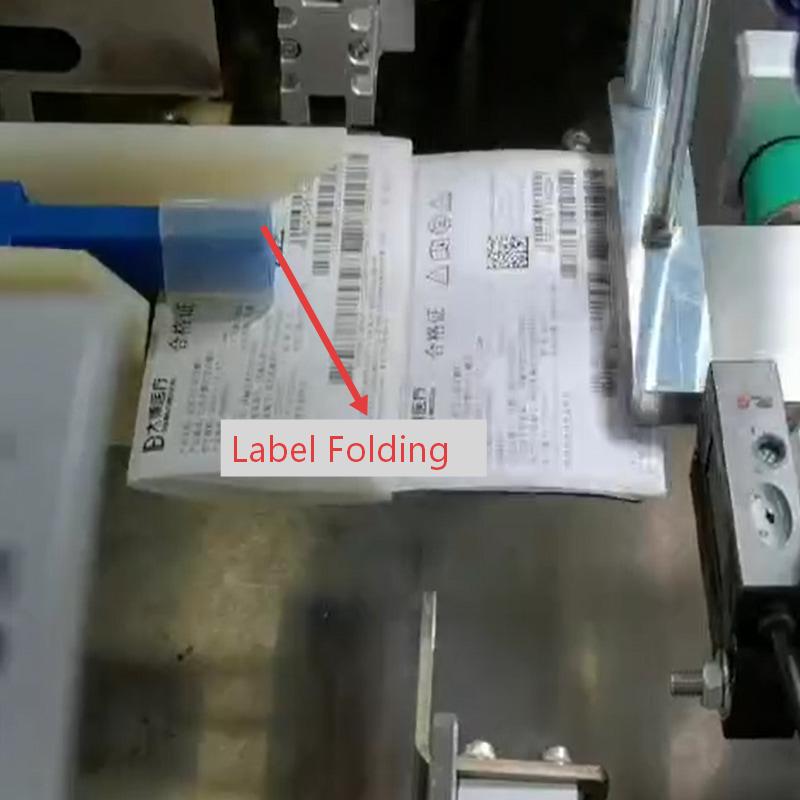

| 3 | Automatic Label Folding | Labels are automatically folded, with both sides of the folded label facing outward | 0 | - |
| 4 | Automatic Label Printing | Automatic printer (ZEBRZ 105S) | 0 | Single label printing |
| 5 | Automatic Label Conveying | Labels are automatically conveyed to the feeding positioning end | 0 | - |
| 6 | Visual Inspection | Two sets of vision systems scan the barcodes respectively and judge whether the labels at the two label positioning ends are consistent; inconsistent labels are automatically rejected and an alarm is triggered | 0 | Dual-vision inspection |
| 7 | Label Feeding | The 4-axis - 600 robot automatically grabs two groups of consistent labels and places them on the circular fixture | 0 | 4-axis - 600 robot |
| 8 | Automatic Instruction Sheet Feeding | Dual-stack alternating feeding, equipped with an automatic lifting mechanism for feeding; the manipulator automatically picks up the sheets and places them on the circular fixture | 0.3 | Manual loading (each hopper can store about 200 sheets) |
| 9 | Visual Inspection | Vision system detects whether there are instruction sheets in the fixture | 0 | - |
| 10 | Chain Conveyor Line | Conveys screw kits (each chain storage bin can hold about 5 screws, with a total of 20 storage bins) | 0.3 | Manual loading |

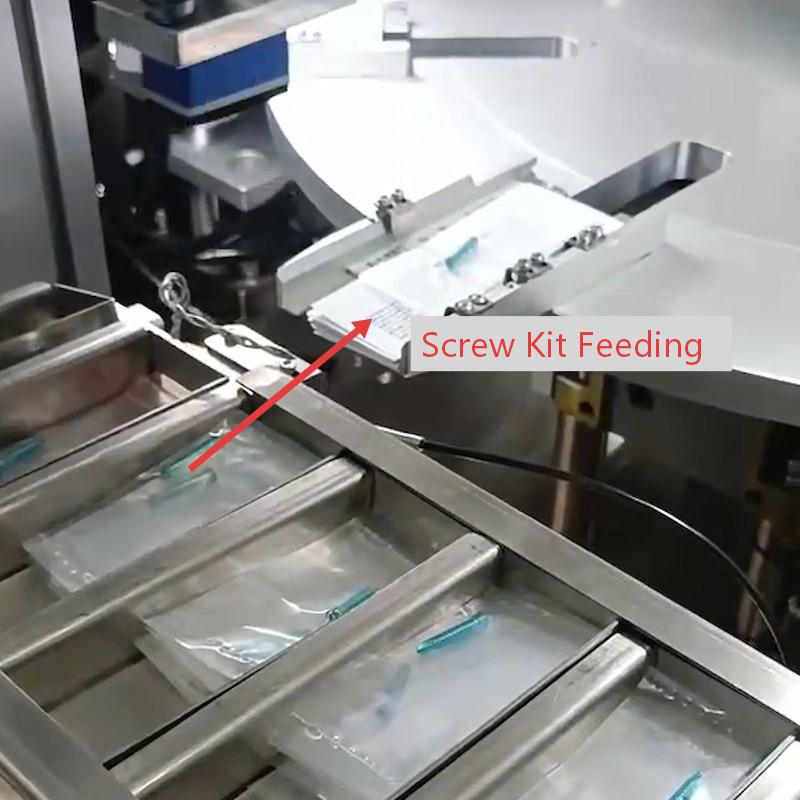

| 11 | Automatic Screw Kit Feeding | Automatic feeding of screw kits | 0 | - |
| 12 | Visual Inspection | Vision system detects whether there are screws in the materials inside the fixture | 0 | - |
| 13 | Automatic Bagging | The manipulator automatically pushes 4 types of accessories in the fixture into the packaging bags | 0 | - |

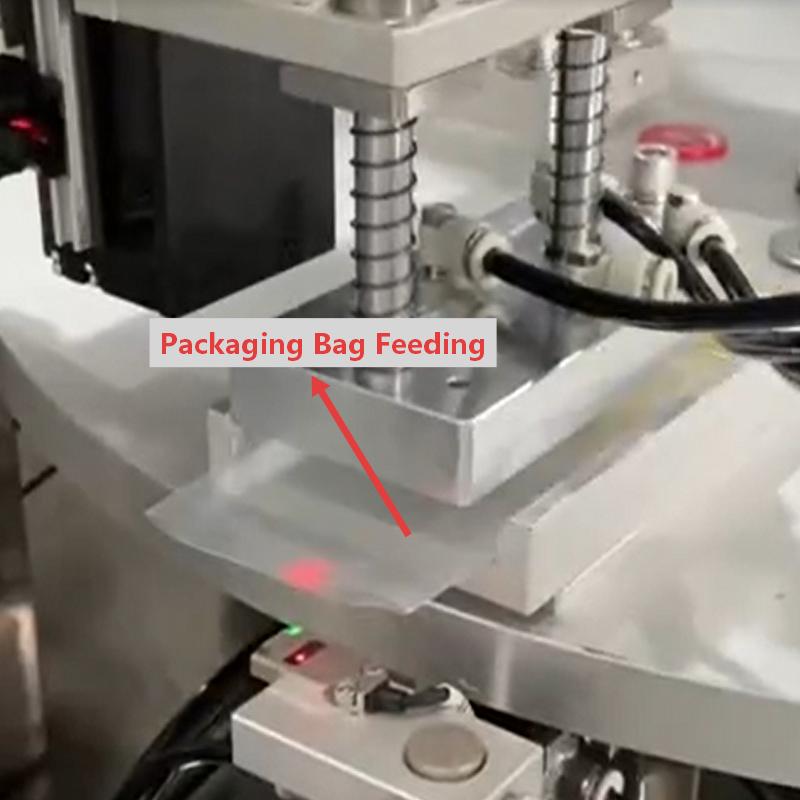

| 14 | Automatic Packaging Bag Feeding | Dual-stack alternating feeding, equipped with an automatic lifting mechanism for feeding; the manipulator automatically picks up the bags and places them on the stepping conveyor line | 0.3 | Manual loading (each hopper can store about 300 bags) |
| 15 | Automatic Sealing | The conveyor line automatically conveys the bags to the sealing station for automatic sealing | 0 | - |
| 16 | Automatic Unloading | Automatic unloading to the discharge conveyor line | 0 | - |
| 17 | Discharge Conveyor Line | Conveys finished products |
Product Paramenters
| Equipment name | Multi-material Integrated Automatic Bagging Machine |
| Material | High strength aluminum, steel |
| Function | Complete integrated bagging of multiple materials |
| Applicable product size | / |
| Operation mode | Handle and touch screen |
| Equipment power | 4.5KW |
| Equipment Voltage AC | 220V 50Hz |
| Equipment model | Synrit-BM1 |
| Equipment size | 3.2*1.8*2M |
| Colour | Industrial white |
| Shape | Class cubes |
| Production speed | 600 pcs/h |
| Apply product | / |
| MOQ | 1pcs |
Equipment Component Configuration List
| English Name | Brand | Quality |
| Guide Rail | HIWIN (Taiwan)/AIRTAC | Genuine |
| Slider | HIWIN (Taiwan)/AIRTAC | Genuine |
| Pneumatic Components | AIRTAC/SMC | Genuine |
| Robot | DELTA/Sanyang | Genuine |
| Vision System | Xinruite | Genuine |
| PLC (Programmable Logic Controller) | DELTA | Genuine |
| HMI (Human-Machine Interface) | WEINVIEW/DELTA | Genuine |
| Relay | OMRON | Genuine |
| Switching Power Supply | DELTA/MEANWELL | Genuine |
| Asynchronous Motor | Jingyan | Genuine |
| Indexer | Shandong University Ruihua | Genuine |
| Servo Motor | DELTA | Genuine |
| Stepper Motor | Leadshine | Genuine |
| Frequency Converter | DELTA | Genuine |
| Encoder | OMRON | Genuine |
| Bearing | NSK/HRB | Genuine |
| Sensor | Panasonic | Genuine |
| Magnetic Switch | AIRTAC | Genuine |
