Pressure Pump Syringe Bonding Assembly Machine

Pressure Pump Syringe Bonding Assembly Machine

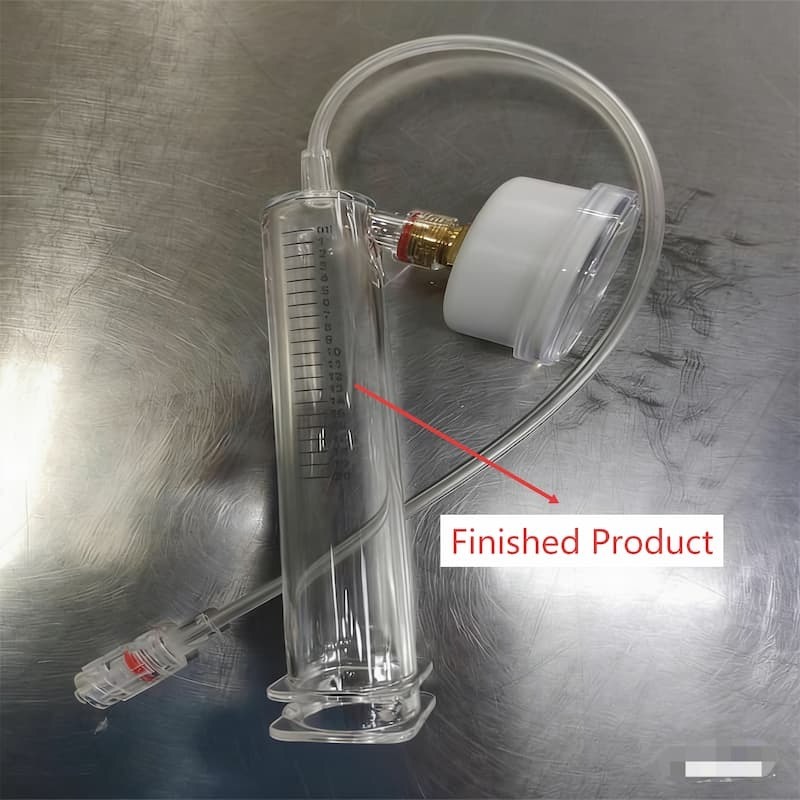

Pressure Pump Syringe Bonding Automatic Assembly Machine is designed for the automated assembly and bonding of pressure pump syringes.It integrates the assembly of syringes, pressure gauges, O-rings, high-pressure braided hoses, high-pressure connectors and other components.It ensures stable and efficient production of disposable medical consumables, helping enterprises reduce costs and improve efficiency.

ModelNo. :
Synrit-ppsb1
Capacity :
400PCS/H
Operating Personnel :
2pers
compliance rate :
>98%
Power :
5KW

Inquire Now

All of our equipment are compatible with non-standard customization. We can tailor-make exclusive automation solutions based on the client’s production line scale, product processes and industry compliance criteria.

Why Choose Synrit Pressure Pump Syringe Bonding Assembly Machine?

High Compliance Rate (>99%): Integrated visual inspection and pressure testing ensure consistent quality for medical device export standards, with auto-sorting of defective products.

Precision Bonding & Assembly: Servo-controlled positioning and calibrated UV glue application guarantee reliable, airtight connections between syringes, pressure gauges, connectors, and hoses.

Flexible Compatibility: Adjustable fixtures handle various syringe and connector sizes, while manual feeding stations for pressure gauges and hoses support flexible production scheduling.

Features：With high precision, high efficiency and reliable performance, it helps you reduce labor costs and improve product consistency.

Product Structure

Process Description

11-Step Automated Assembly Process:

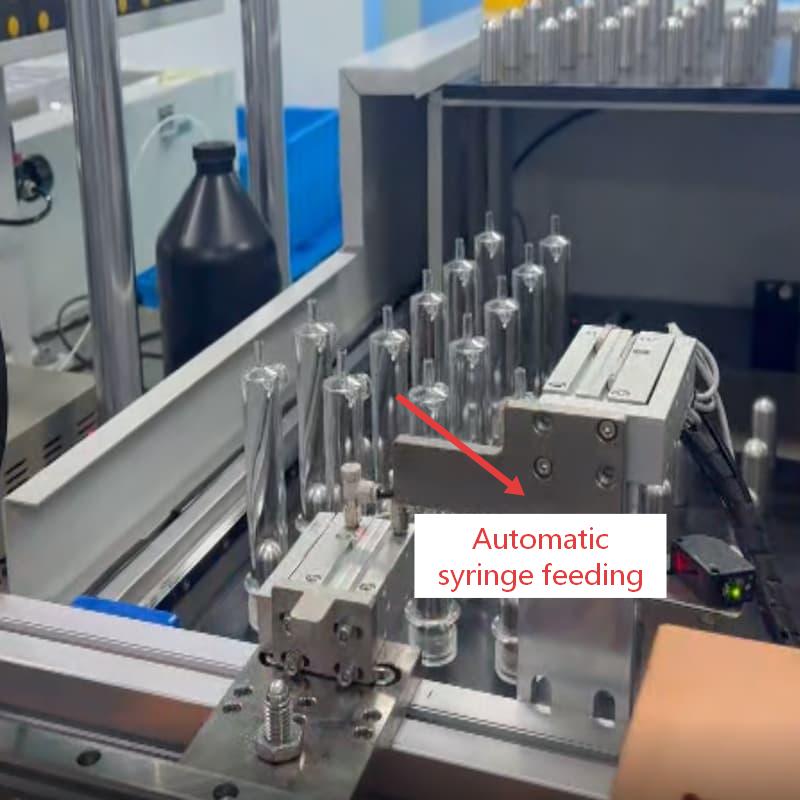

Syringe Feeding: Automatic loading of syringes into the fixture.
O-Ring Installation: Automatic installation of O-rings on the syringe.

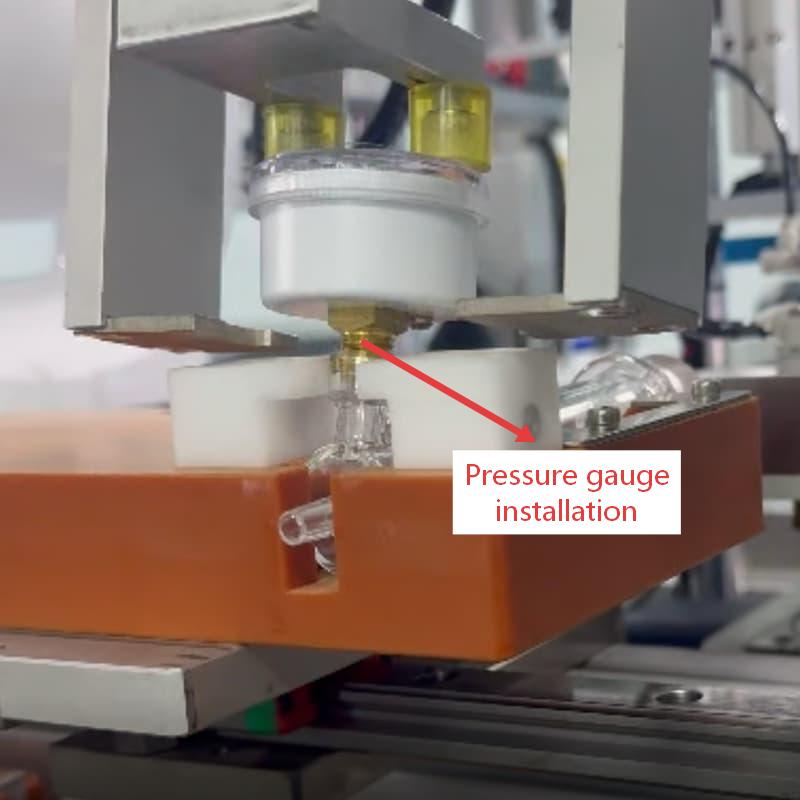

Gauge Manual Loading: Manual placement of pressure gauges onto the tray.
Gauge UV Glue Application: Automatic dispensing of UV glue onto pressure gauges, followed by automatic feeding.
Gauge UV Curing: UV curing of the glue applied to pressure gauges.
Connector Feeding: Automatic loading of high-pressure threaded connectors.

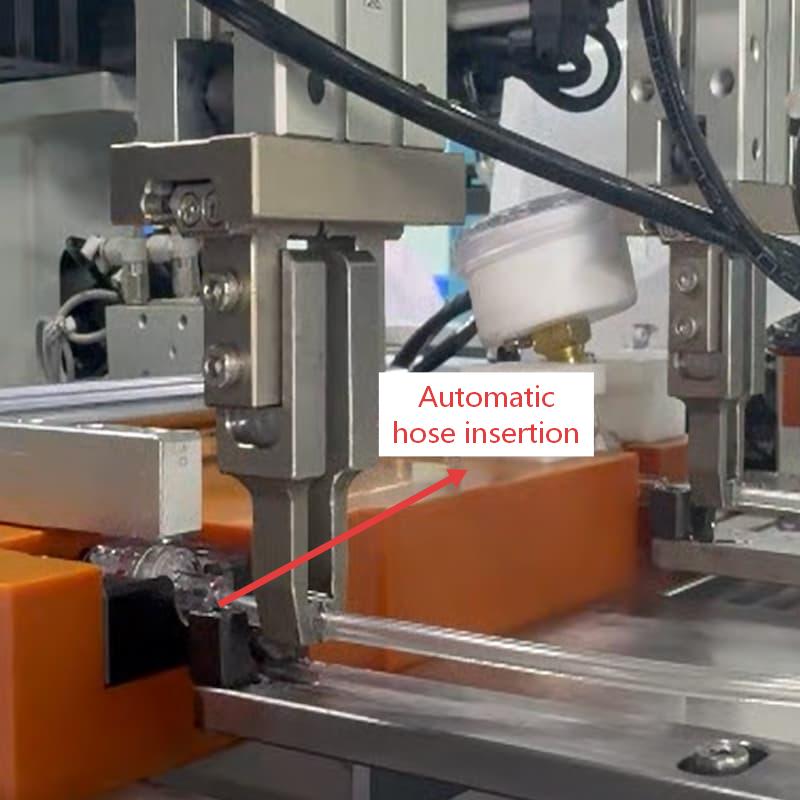

Hose Manual Loading: Manual placement of hoses onto the tray.
Hose UV Glue Application: Automatic dispensing of UV glue onto hoses.
Hose UV Curing: UV curing of the glue applied to hoses.

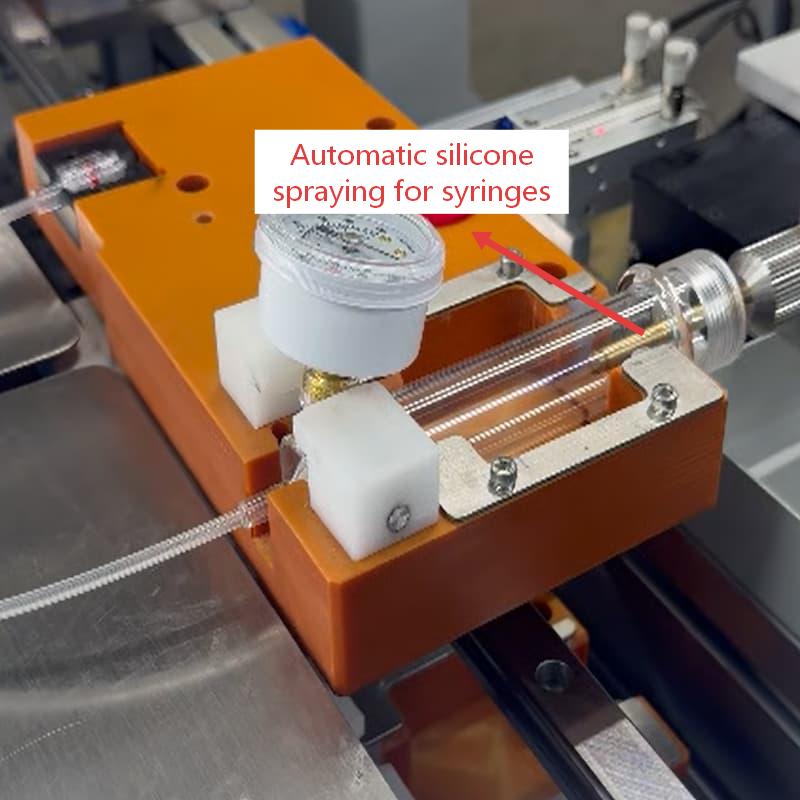

Silicone Oil Spraying: Automatic spraying of silicone oil inside the syringe.
Unloading: Automatic unloading of finished assemblies.

Equipment Configuration

Automatic Assembly Machine: 1 set
Material Vibration Feeder: 2 units

Product Parameters

Equipment name	Pressure Pump Syringe Bonding Automatic Assembly Machine
Material	High strength aluminum, steel
Function	It integrates the assembly of syringes, pressure gauges, O-rings, high-pressure braided hoses, high-pressure connectors and other components.
Applicable product size	/
Operation mode	Handle and touch screen
Equipment power	5KW
Equipment Voltage AC	220V 50Hz
Equipment model	Synrit-ppsb1
Equipment size	6.01.52.0M
Colour	Industrial white
Shape	Class cubes
Production speed	400PCS/H
Apply product	/
MOQ	1pcs

Equipment Component Configuration List

Item	Brand	Remarks
Guide Rail & Slider	HIWIN, AIRTAC	Genuine
Pneumatic Components	AIRTAC/EMC	Genuine
Motion Controller	SYNRIT	Genuine
HMI	WEINVIEW, DALTA	Genuine
Relay	OMRON	Genuine
Switching Power	DALTA, MEANWELL	Genuine
Asynchronous Motor	JSCC	Genuine
Servo Motor	KOSSI/HCFA	Genuine
Stepper Motor	RUI TE	Genuine
Bearing	NSK, HRB	Genuine
Sensor	Panasonic/Equiv.	Genuine
Magnetic Switch	AIRTAC	Genuine

Video

FAQ

1. What is the production capacity of the machine?

The machine achieves a stable output of 400 pcs/h (adjustable based on product specifications and glue curing time), suitable for medium-to-large batch production of disposable medical pressure pump syringes.

2. Can the machine adapt to multiple product specifications?

Yes. It features modular adjustable fixtures that support quick switching of syringe sizes, high-pressure connectors, and hoses within the designed range. The switching process takes only 15–30 minutes, meeting flexible production needs.

3. What are the core components of the machine?

The standard configuration includes 2 material vibration feeders (for syringes and high-pressure threaded connectors), servo positioning systems, UV glue dispensing modules, UV curing lamps, silicone oil spraying systems, and a PLC control system with a touch screen.

4. What is the warranty period of the equipment? What services are provided during the warranty period?

The warranty period of the equipment is 1 year (starting from the date of acceptance). During the warranty period, if the equipment malfunctions due to non-human factors, we will provide free on-site maintenance services, including free replacement of faulty components, technical debugging, etc.; at the same time, we provide 7×24-hour technical consulting services to timely answer operation and maintenance questions.

5.If it is necessary to increase production capacity, can the existing equipment be upgraded?

Yes. We support upgrading and transforming existing equipment according to customer's production capacity needs, such as optimizing the speed of the conveying line, adding parallel stations, upgrading the automatic control system, etc. The specific upgrade plan needs to be formulated by the technical team through on-site investigation of the equipment status and combined with the production capacity target. The upgrade will not affect the original compatibility
