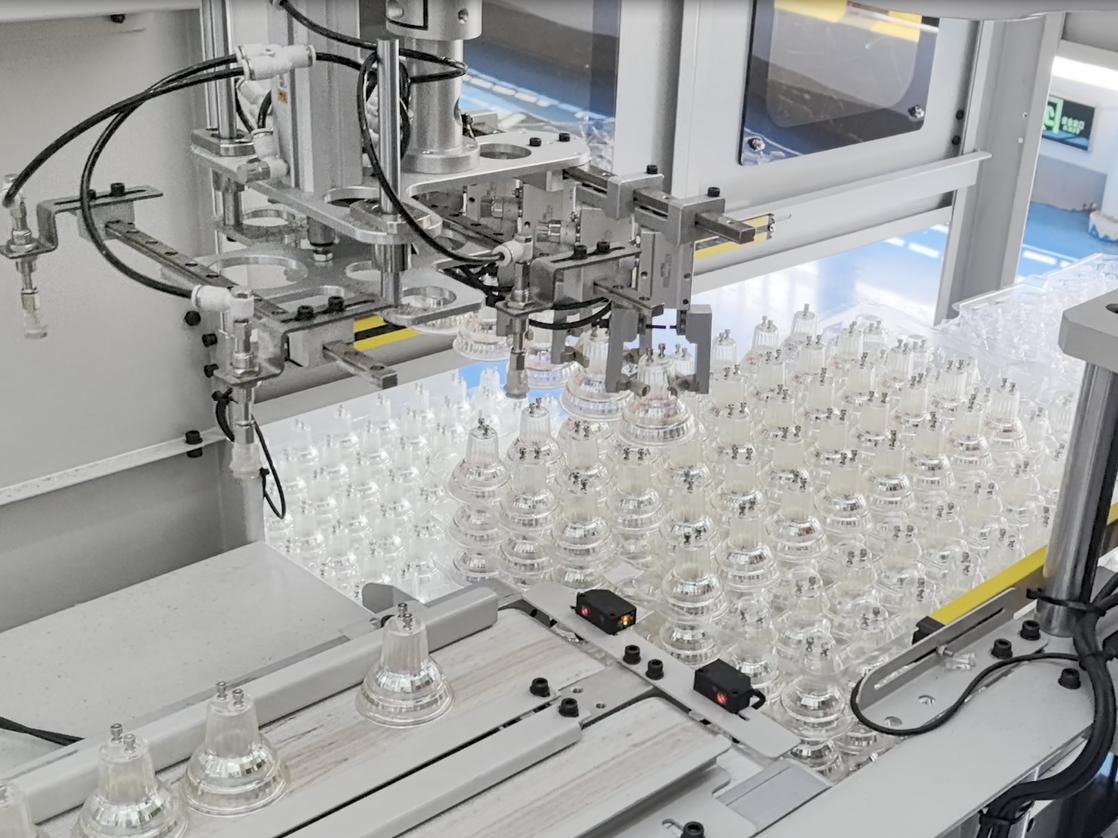

Fully Automatic Assembly Machine for Medical High-Pressure Three-Way Valve

Fully Automatic Assembly Machine for Medical High-Pressure Three-Way Valve

Fully Automatic Assembly Machine for Medical High-Pressure Three-Way Valve

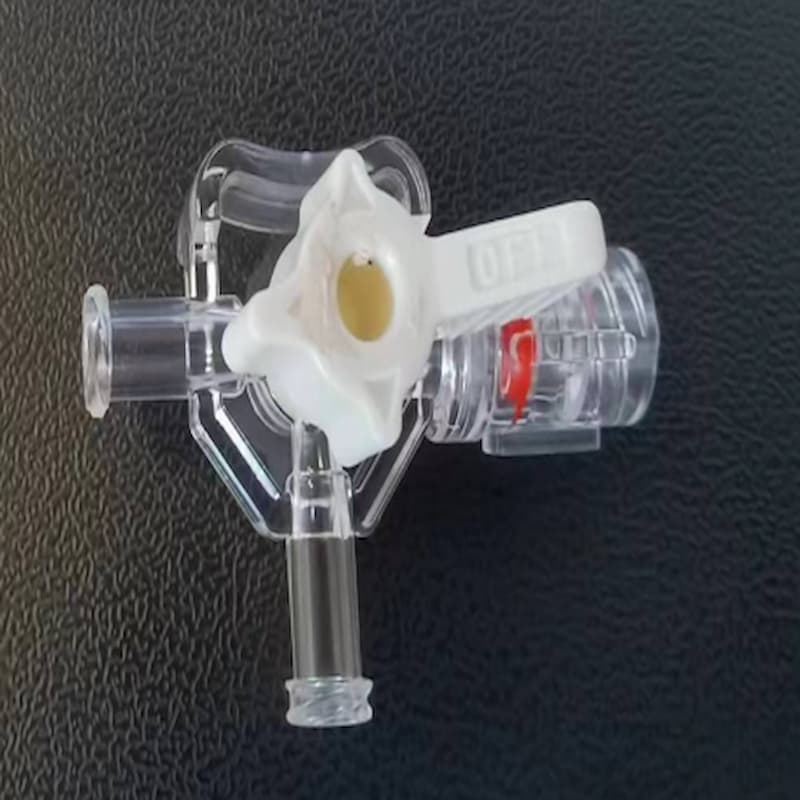

This machine fully automates the assembly process of medical high-pressure three-way valves.
It completes full automatic procedures including automatic valve body feeding, automatic silicone oil filling, automatic valve core feeding, automatic UV glue dispensing, automatic connector feeding and finished product automatic unloading.
Inquire Now



Note: The structure of high-pressure three-way valves varies among different manufacturers. We do not display detailed product accessories here. Custom non-standard automation solutions can be designed according to your actual products. This case only shows partial assembly processes. Please contact us for more detailed information.



Process Flow Breakdown

No. Process Description Labor Required Remarks

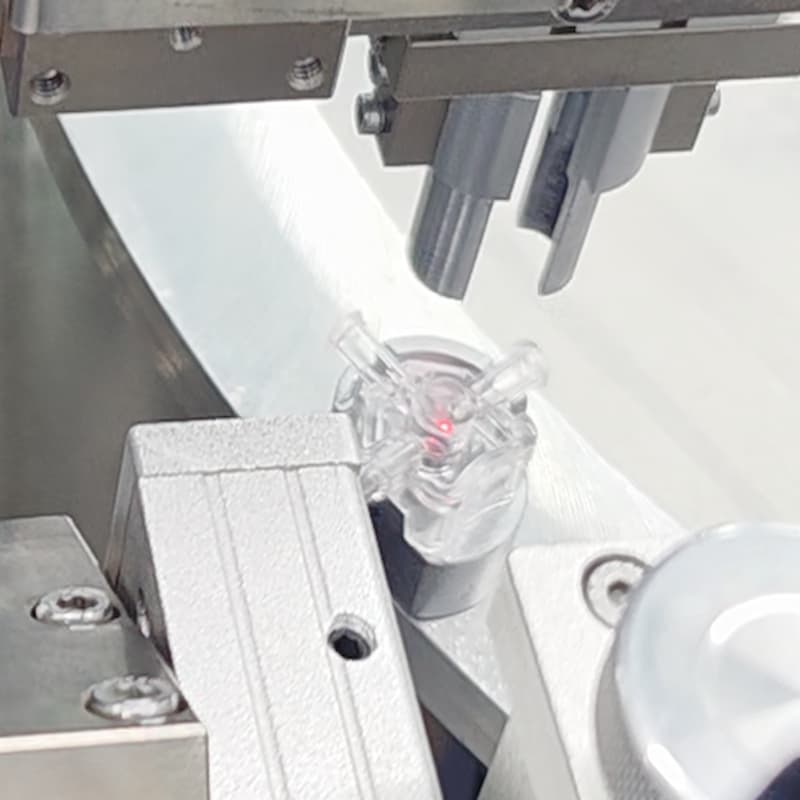

1 Automatic valve body feeding / 0.3 person Vibratory bowl feeding
2 Material inspection / 0 person /

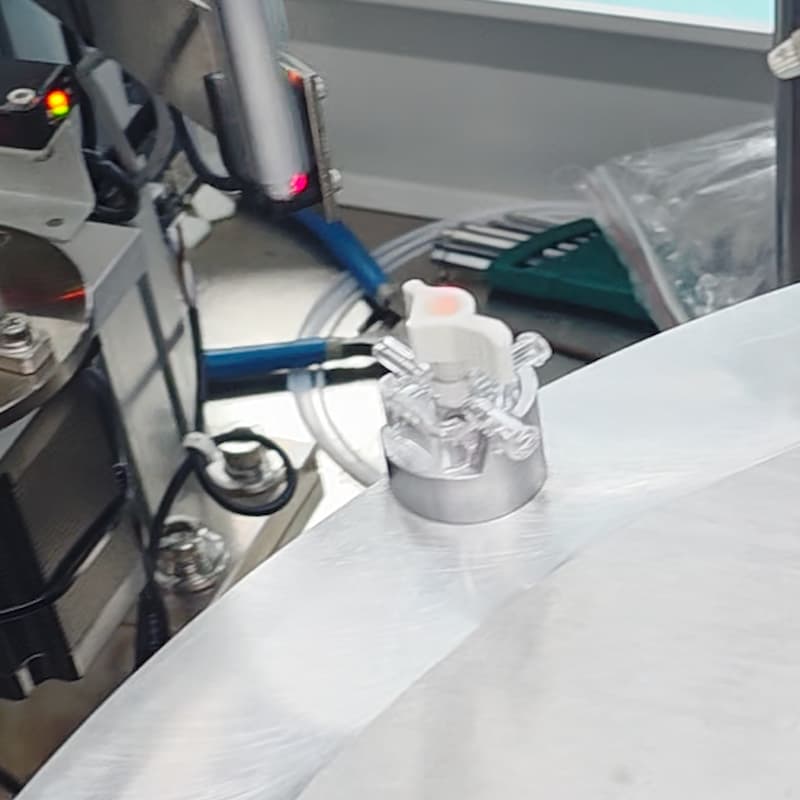

3 Automatic silicone oil injection / 0 person Automatic oil filling
4 Automatic valve core feeding / 0.3 person Vibratory bowl feeding

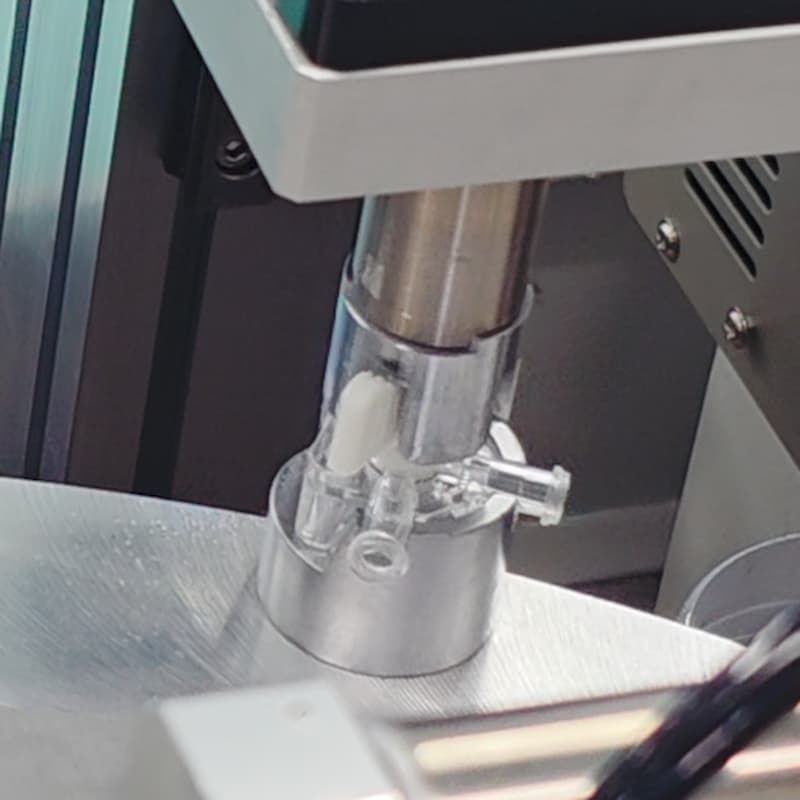

5 Automatic valve core pressing & angle positioning / 0 person /
6 Automatic UV glue dispensing / 0 person /
7 Automatic high-pressure threaded connector feeding / 0 person Vibratory bowl feeding
8 UV curing oven processing / 0 person UV glue curing
9 Automatic finished product unloading / 0 person Unload to material tray

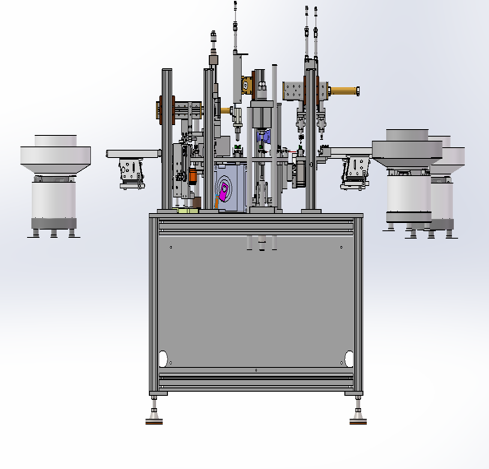

Assembly Equipment Layout





Equipment Overview

  1. 1 set of main automatic assembly machine
  2.  3 sets of material vibratory feeders



Basic Parameters

  1. Production Efficiency: 600 pieces per hour
  2. Operator: 1 person (for material feeding & finished product collection)
  3. Rated Input Power: 3KW
  4. Overall Dimension: Approx. 2.6×1.2×2.1m (Length×Width×Height)



Standard Configuration List

Components Brand Remarks
Linear Guide & Slider HIWIN, AIRTAC Original genuine
PLC Controller Delta Original genuine
Pneumatic Components AIRTAC / EMC Original genuine
Motion Controller Synrit Original genuine
HMI Touch Screen Weinview, Delta Original genuine
Relay Omron Original genuine
Switch Power Supply Delta, Meanwell Original genuine
Asynchronous Motor JINGYAN Original genuine
Servo Motor COSY, HCFA Original genuine
Stepper Motor XINGFENGYUAN Original genuine
Bearing NSK, HRB Original genuine
Photoelectric Sensor Panasonic & equivalent brands Original genuine
Magnetic Switch AIRTAC Original genuine
