Home LED Bulb Assembly line

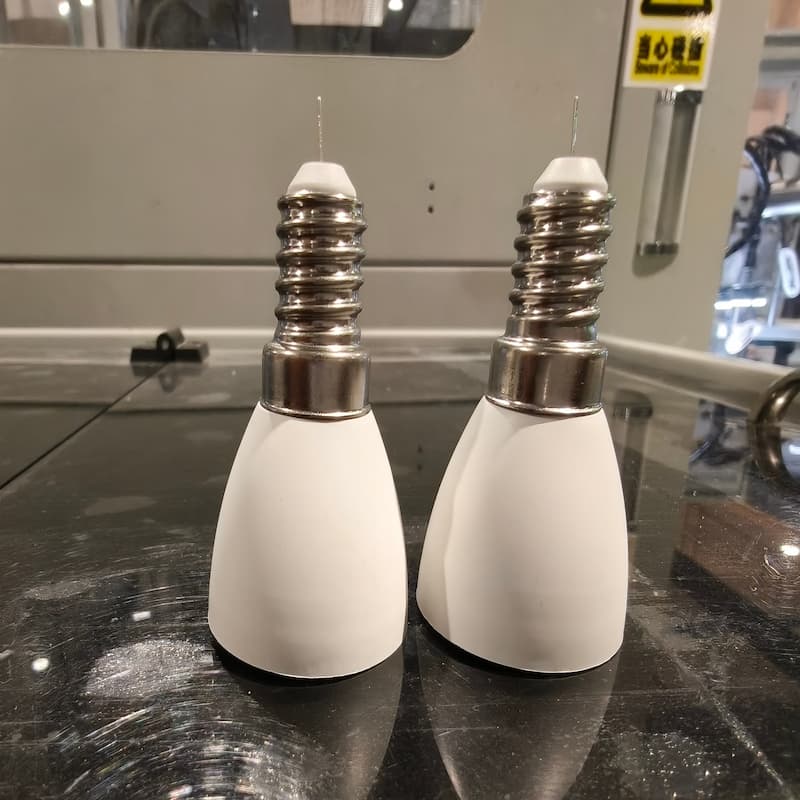

E14 Bulb Lamp Automatic Assembly Line

Name: E14 Bulb Lamp Automatic Assembly Line
Availability: InStock

This assembly line completes the automated assembly processes for E14 bulb lamps, including automatic component insertion of light source boards, automatic lamp cup loading, automatic pressing, automatic wire bending, automatic wire cutting, automatic lamp cap component assembly, automatic gluing, automatic bulb shell mounting, automatic testing, and automatic defective product sorting.

ModelNo. :
Synrit-E14
Capacity :
1200PCS/H
Operating Personnel :
0 pers
compliance rate :
>98%
Power :
3.5KW
compatible :
G45-C37 LED bulb lamps

Inquire Now

All of our equipment are compatible with non-standard customization. We can tailor-make exclusive automation solutions based on the client’s production line scale, product processes and industry compliance criteria.

Why Choose Synrit E14 Assembly Line?

Zero-Labor Operation: Fully automated process requires 0 operating personnel for the core assembly, significantly reducing labor costs by up to 80% compared to manual lines.

High Compliance Rate (>98%): Integrated visual inspection and automatic defective product sorting ensure consistent output quality for export standards.

Versatile Compatibility: Designed for G45-C37 LED bulb lamps, with adjustable fixtures to handle minor variations in bulb shell diameters (<50mm).

Modular Design: Supports easy integration with existing packaging lines or upstream manufacturing equipment.

Product Structure

Process Description

11-Step Automated Assembly Process:

1. Feeding: Automatic loading of light source boards and lamp cups.

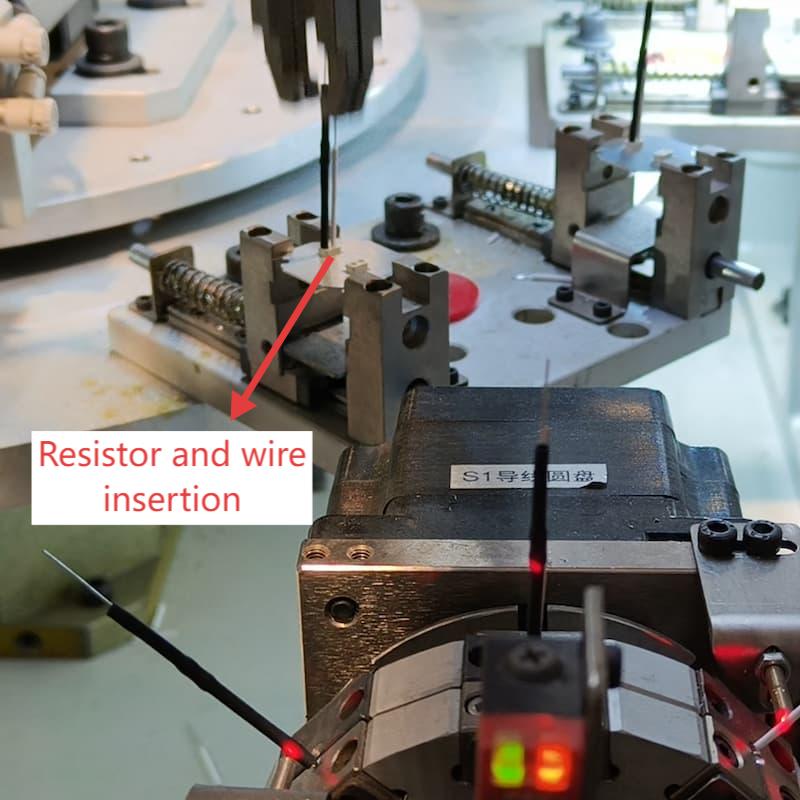

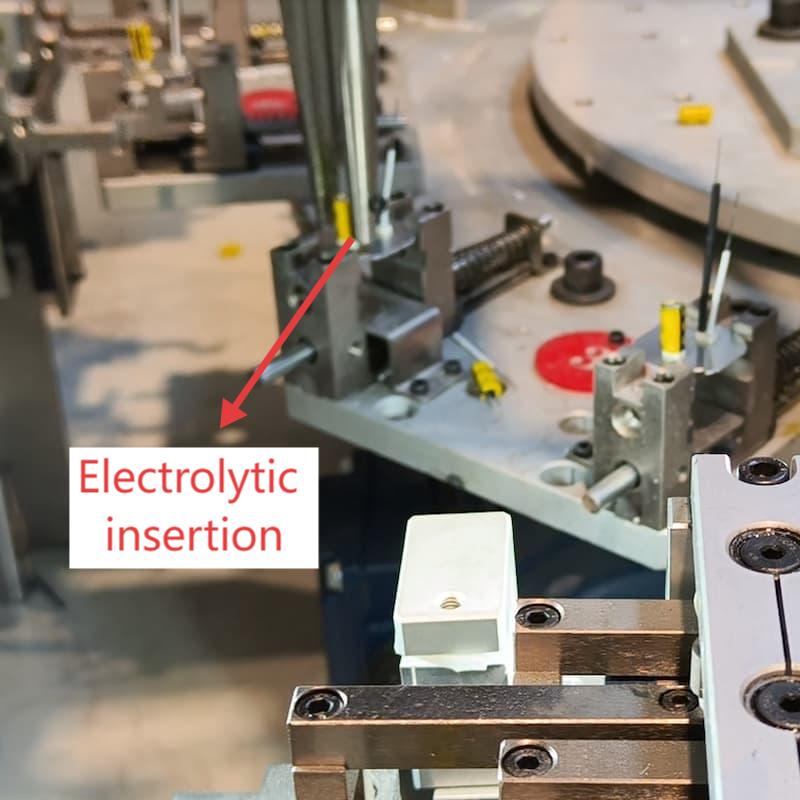

2. components Insertion: High-precision insertion of the components into the light source board.

3. Board Insertion: High-precision insertion of the light source board into the cup.

4. Pressing: Securely fixing the components.

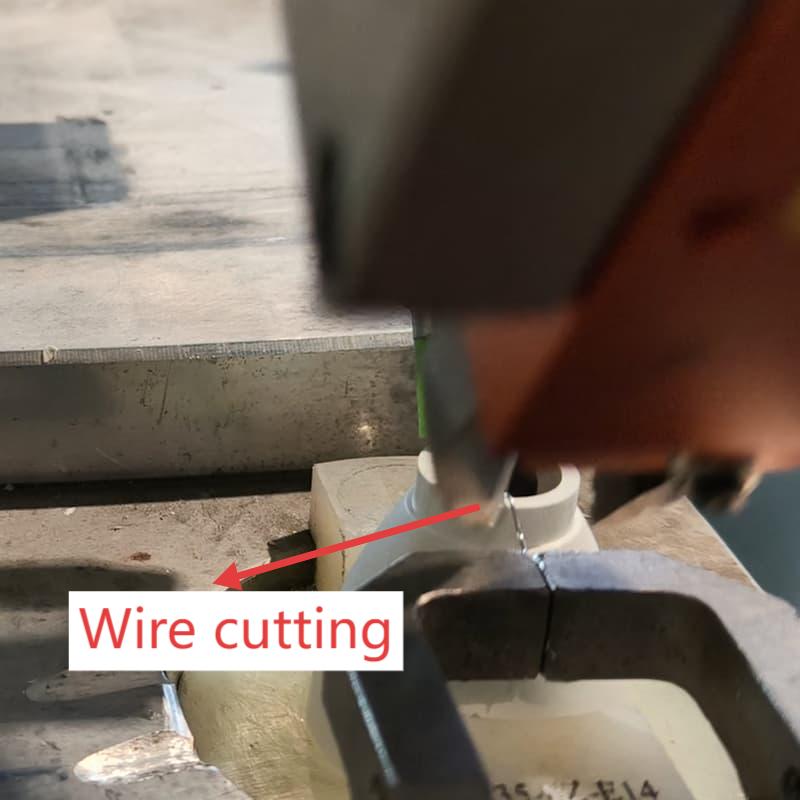

5. Wire Processing: Automatic wire bending and precise cutting.

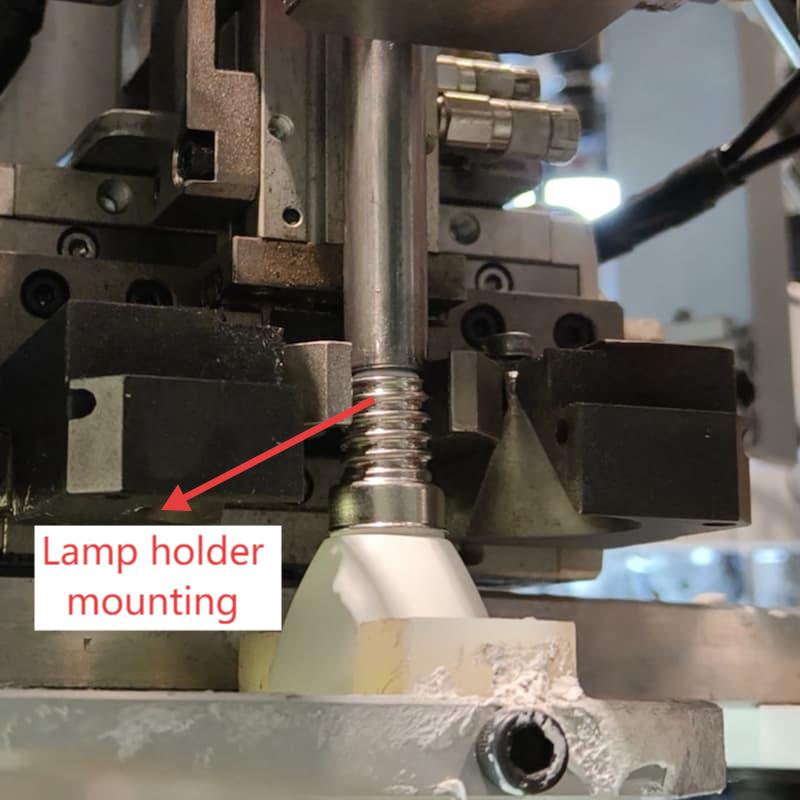

6. Assembly: Lamp cap component installation.

7. Gluing: Automatic dispensing of adhesive.

8. Mounting: Bulb shell (cover) placement and fixation.

9. Aging/Testing:Electrical connectivity and lighting tests.

10. Sorting: Automatic rejection of NG (Not Good) products.

11. Output: Finished good discharge to the packaging line.

Equipment Configuration

1.Board Separating & Assembling Machine: 1 unit (including 1 set of special-purpose fixtures)
2.Bulb Shell Feeder: 1 set

Compatibility Notes

1.This production line is only compatible with E14 bulb lamp products.
2.Compatible with standard G45-C37 LED bulb lamps (maximum product diameter < 50mm).

Product Parameters

Equipment name	E14 Bulb Lamp Automatic Assembly Line
Material	High strength aluminum, steel
Function	This production line realizes the automated assembly process of E14 bulb lamp products.
Applicable product size	E14/G45-C37 LED bulb lamps
Operation mode	Handle and touch screen
Equipment power	3.5KW
Equipment Voltage AC	220V 50Hz
Equipment model	Synrit-E14
Equipment size	3.521.5M
Colour	Industrial white
Shape	Class cubes
Production speed	1200PCS/H
Apply product	E14 bulb lamps
MOQ	1pcs

Equipment Component Configuration List

Item	Brand	Remarks
Guide Rail & Slider	HIWIN, AIR TAC	Genuine
Pneumatic Components	AIR TAC	Genuine
Motion Controller	SYNRIT	Genuine
HMI	WEINVIEW, DALTA	Genuine
Relay	OMRON	Genuine
Switching Power	DALTA, MEANWELL	Genuine
Asynchronous Motor	JSCC	Genuine
Servo Motor	KOSSI/HCFA	Genuine
Stepper Motor	RUI TE	Genuine
Bearing	NSK, HRB	Genuine
Sensor	Panasonic/Equiv.	Genuine
Magnetic Switch	AIR TAC	Genuine

FAQ

1.Is this automatic equipment only compatible with E14 lamps? Can it be used for other types of lighting products?

Yes, the equipment is precisely compatible with E14 series bulb lamps by default. If compatibility with other models (such as E27, B22, etc.) is required, please inform us of your needs in advance. Our technical team will customize and modify the fixtures and program parameters, enabling multi-model compatible production after modification.

2.What is the specific size range of E14 lamps that the equipment can adapt to?

A2: The standard size range of E14 lamps adaptable to the equipment is: maximum diameter ≤ 50mm, height ≤ 120mm (excluding lamp holder). If the size of your product exceeds this range, please provide detailed size parameters for our evaluation on whether equipment structure adjustment is needed.

3.Can the equipment adapt to E14 lamp cups or bulb shells of different materials?

It can be compatible with E14 lamp cups and bulb shells of common materials (such as PC, glass, aluminum). For special materials (such as fragile glass, special coated materials), please inform us in advance. We will optimize parameters such as pressing force and conveying speed to avoid product damage.

4. What is the warranty period of the equipment? What services are provided during the warranty period?

The warranty period of the equipment is 1 year (starting from the date of acceptance). During the warranty period, if the equipment malfunctions due to non-human factors, we will provide free on-site maintenance services, including free replacement of faulty components, technical debugging, etc.; at the same time, we provide 7×24-hour technical consulting services to timely answer operation and maintenance questions.

5.If it is necessary to increase production capacity, can the existing equipment be upgraded?

Yes. We support upgrading and transforming existing equipment according to customer's production capacity needs, such as optimizing the speed of the conveying line, adding parallel stations, upgrading the automatic control system, etc. The specific upgrade plan needs to be formulated by the technical team through on-site investigation of the equipment status and combined with the production capacity target. The upgrade will not affect the original compatibility andstability of the equipment. stability of the equipment.
